Description

Features

• Guaranteed Availability
  Ensured product availability through 2035.
• No Licensing or Subscription Fees
  Enjoy perpetual usage without recurring costs.
• Lifetime Free Firmware Updates
  Receive continuous improvements with effortless, free firmware updates for the device’s lifetime.
• Modern USB-C Connectivity
  Equipped with a USB-C connector for seamless integration with modern systems.
• Premium TI TCAN3413 CAN Transceiver
  Utilizes the industry-leading Texas Instruments TCAN3413 for reliable CAN communication.
• Plug and Play Compatibility
  Instant support for Mac, Windows, and Linux platforms without the need for additional drivers.

Technical Specifications

CAN Bus

• Channels
  3 CAN channels for versatile network configurations.
• Protocol Support
  Full implementation of CAN protocol specification v2.0b, supporting both Standard and Extended frames.
• Data Rates
  • Standard CAN: Up to 1 Mbit/s
  • CAN2 Flexible Data Rate: Up to 8 Mbit/s
• Payload Capacity
  • Standard CAN: Up to 8 bytes
  • CAN2 Flexible Data Rate: Up to 64 bytes
• Compatibility
  High-speed CAN connection, ISO 11898-2 compliant.
• Connection Interface
  D-Sub 9-pin connector in accordance with CiA® 106 standards.
• Ground Isolation
  Ground isolation available upon request; standard models feature non-isolated ground.

USB Connectivity

• Connector Type
  USB HS (High Speed) 2.0-C for high-speed data transfer and power delivery.
• Data Transfer Rates
  • Maximum Speed: 480 Mbit/s (60 MB/s)
  • Write Speed: 25–30 MB/s
  • Read Speed: 30–42 MB/s
• Power Supply
  Powered via USB-C, eliminating the need for an external power source.

Additional Specifications

• Termination
  Software-selectable termination for flexible network configurations.
• Operating Temperature Range
  -40 °C to 125 °C
  Industrial and extended enclosure options available upon request.
• TimeStamp Resolution
  < 42 μs

What’s in the Box?

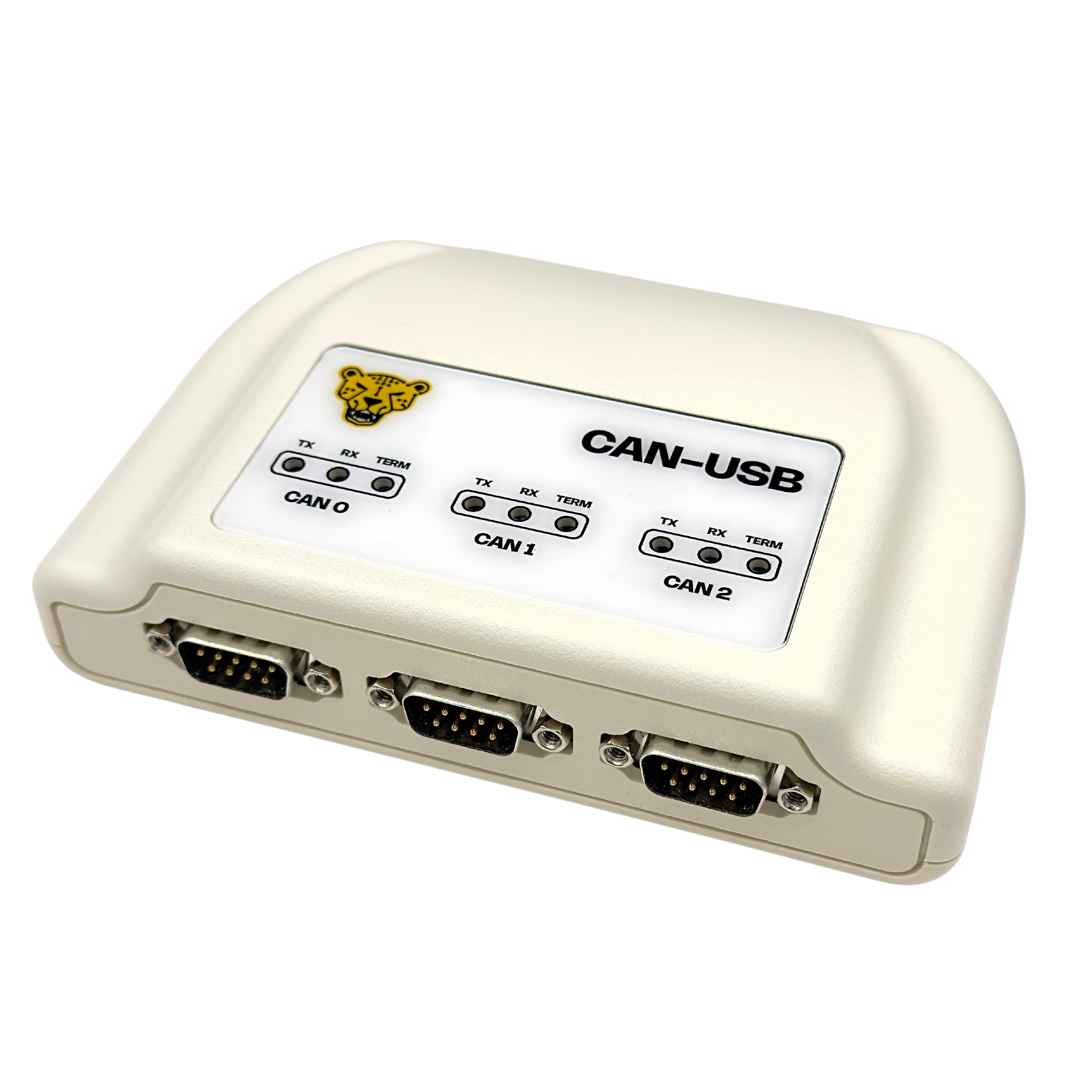

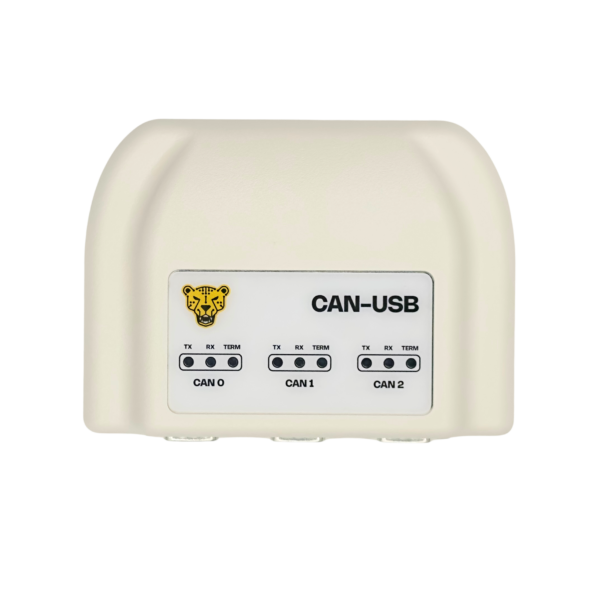

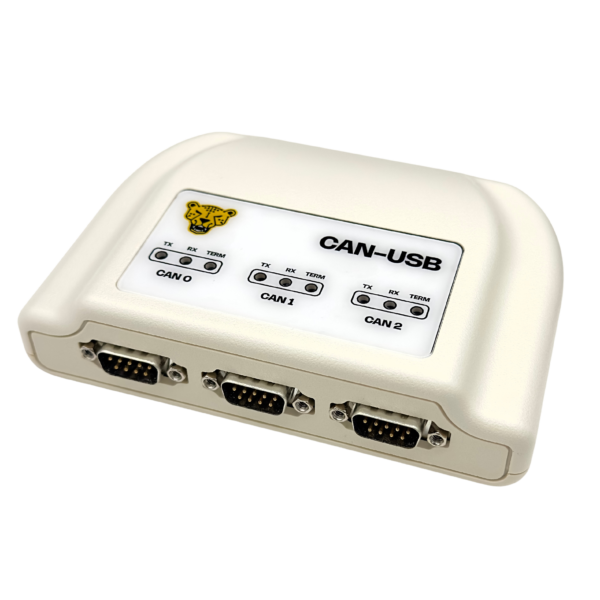

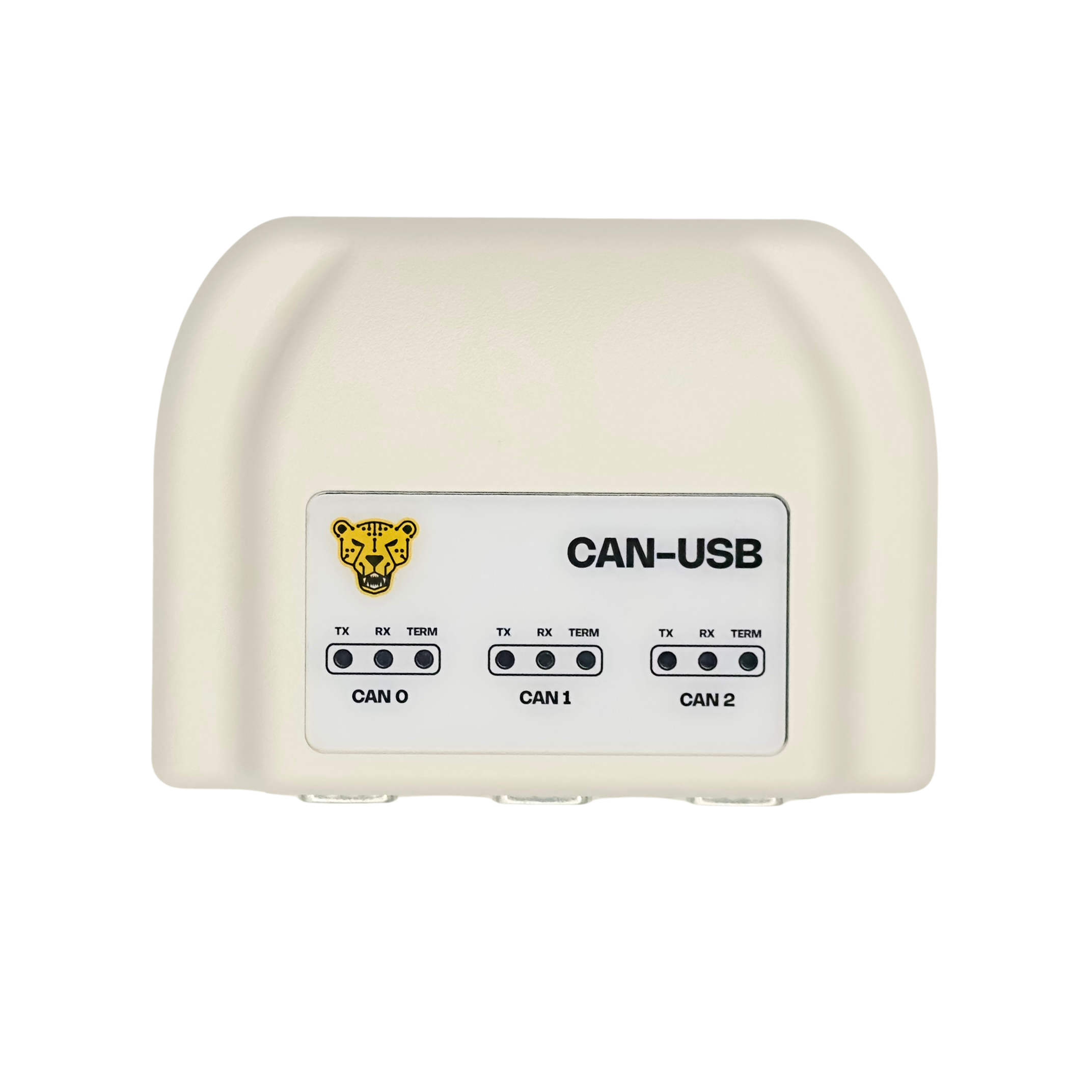

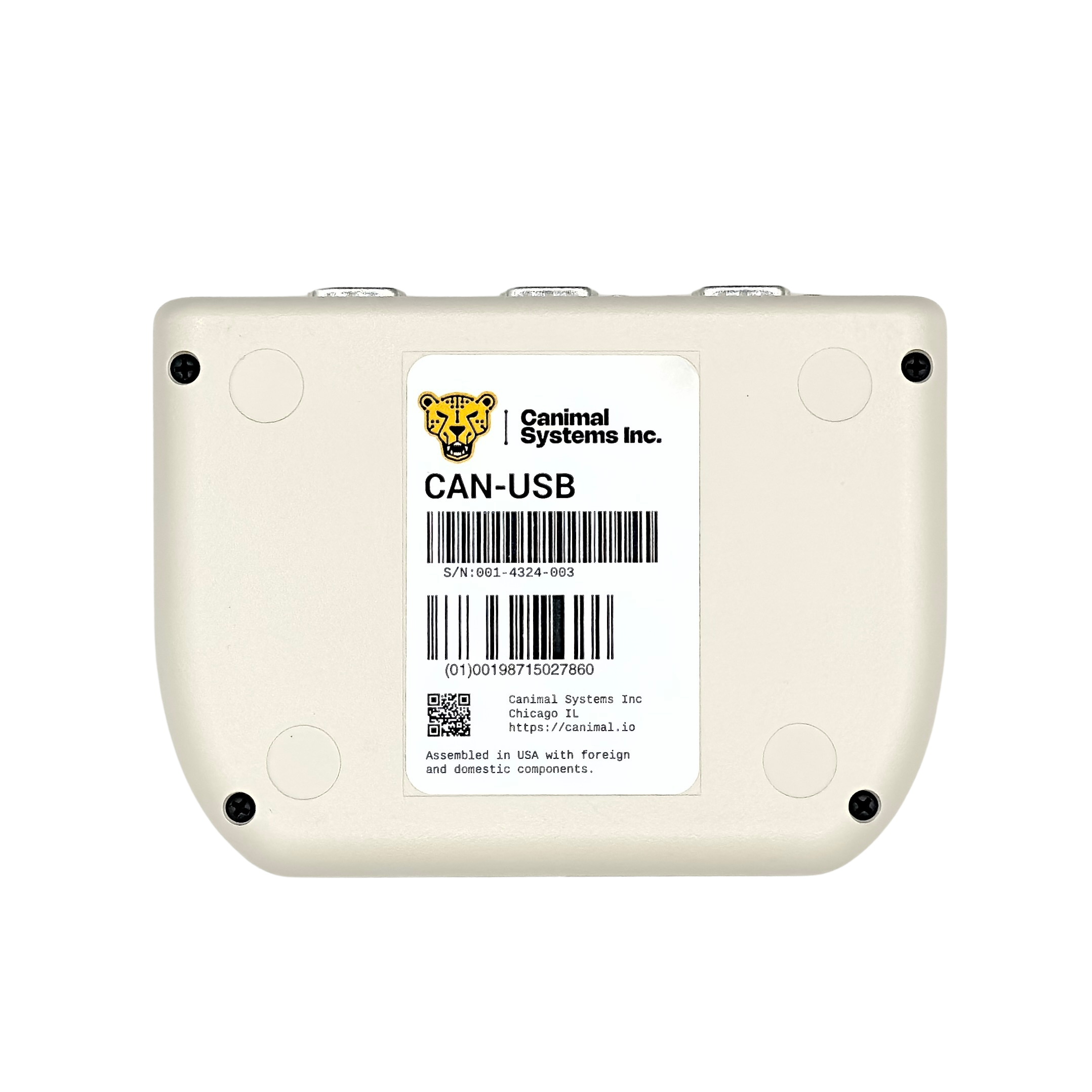

• CANIMAL CAN-USB 3 Channel CAN Transceiver
• USB C – USB C Cable

CAN-USB Data Sheet

For more detailed information or specific inquiries, please contact our support team or visit our Support page.
